Power Adapter Series

For over 50 years, Billion has stood firmly in the power supply market, delivering reliable power solutions and integrated services that support the Group’s smart energy products and applications.

Integrity in Business

Integrity in Business

Job title


Learn more
Innovation in Technology

Innovation in Technology

Job title


Learn more
Stable Quality in Product

Stable Quality in Product

Job title


Learn more
Committed to Customer Satisfaction

Committed to Customer Satisfaction

Job title


Learn more
Quality Assurance & International Certification

30W Power Adapter

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

30A

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.8A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP
  • No Y-Cap Design

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 2.5A max 30W max VI DC Cable
18.0~24.0V 1.86A max 30W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

30D

Interchangeable Plug
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.8A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP
  • No Y-Cap Design

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 2.5A max 30W max VI DC Cable
18.0~24.0V 1.85A max 30W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

IN-2PIN

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

30E

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.8A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP
  • No Y-Cap Design

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 2.5A max 30W max VI DC Cable
18.0~24.0V 1.85A max 30W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

30Y

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.8A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP
  • No Y-Cap Design

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 2.5A max 30W max VI DC Cable
18.0~24.0V 1.85A max 30W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

UK

UK

36W Power Adapter

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

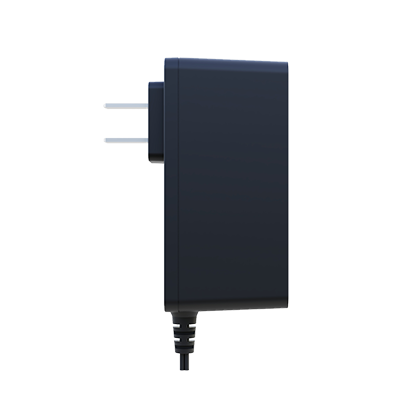

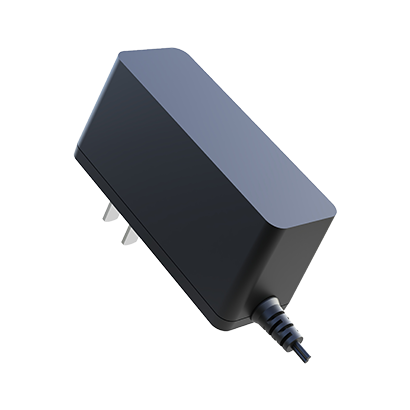

36A

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 3.0A max 36W max VI DC Cable
18.0~24.0V 1.5A max 36W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

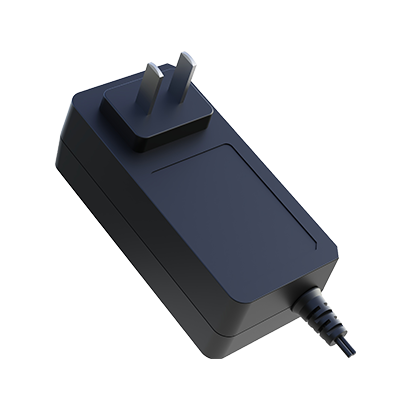

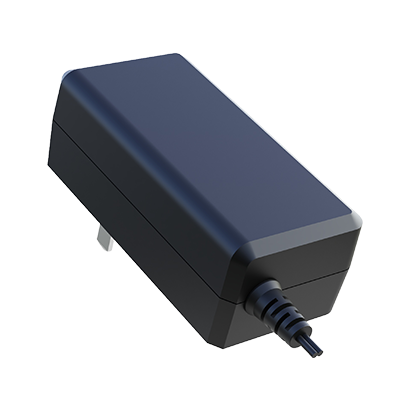

36B

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 3.0A max 36W max VI DC Cable
18.0~24.0V 1.5A max 36W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

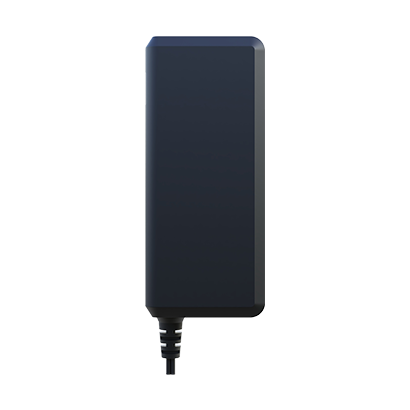

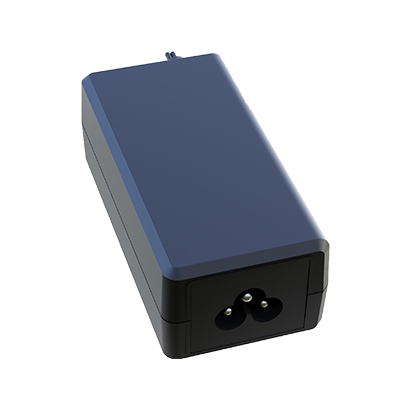

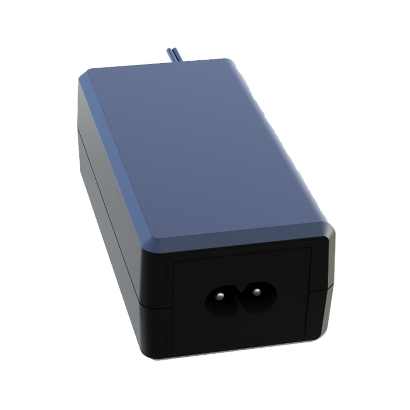

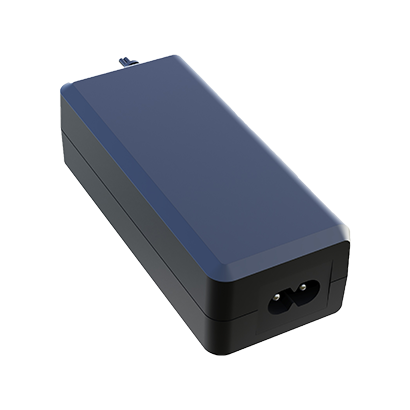

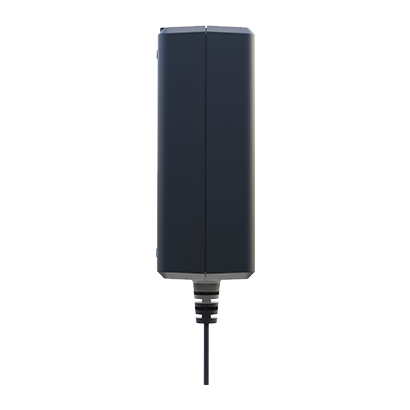

36C

Desktop Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 3.0A max 36W max VI DC Cable
18.0~24.0V 1.5A max 36W max VI DC Cable

AC Plug Types

IEC-C6

IEC-C8

IEC-C14

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

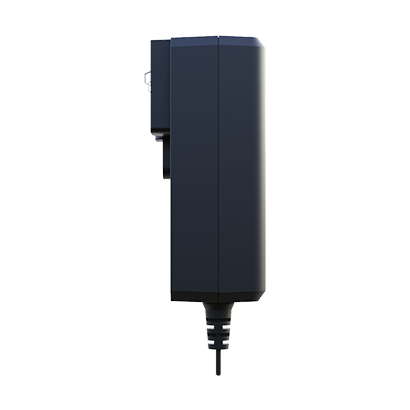

36D

Interchangeable Plug
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 3.0A max 36W max VI DC Cable
18.0~24.0V 1.5A max 36W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

IN-2PIN

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

36A2

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 4kV

Differential Mode 4kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 3.0A max 36W max VI DC Cable
18.0~24.0V 1.5A max 36W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

36D2

Interchangeable Plug
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 4kV

Differential Mode 4kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 3.0A max 36W max VI DC Cable
18.0~24.0V 1.5A max 36W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

36E2

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 4kV

Differential Mode 4kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 3.0A max 36W max VI DC Cable
18.0~24.0V 1.5A max 36W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

36Y2

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 4kV

Differential Mode 4kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 3.0A max 36W max VI DC Cable
18.0~24.0V 1.5A max 36W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

UK

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

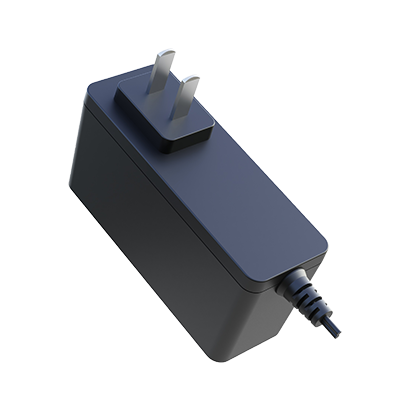

36A3

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 4kV

Differential Mode 4kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
9.0~12.0V 3.0A max 36W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

36D3

Interchangeable Plug
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 4kV

Differential Mode 4kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
9.0~12.0V 3.0A max 36W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

36E3

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 4kV

Differential Mode 4kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
9.0~12.0V 3.0A max 36W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

36Y3

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 4kV

Differential Mode 4kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
9.0~12.0V 3.0A max 36W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

UK

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

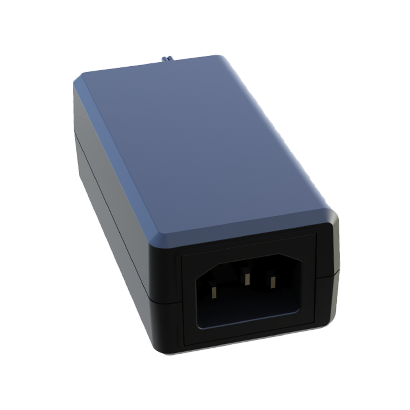

36F3

Desktop Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 1.0A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 4kV

Differential Mode 4kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
12.0~16.0V 3.0A max 36W max VI DC Cable
18.0~24.0V 1.5A max 36W max VI DC Cable

AC Plug Types

IEC-C6

IEC-C8

IEC-C14
