12W Power Adapter

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

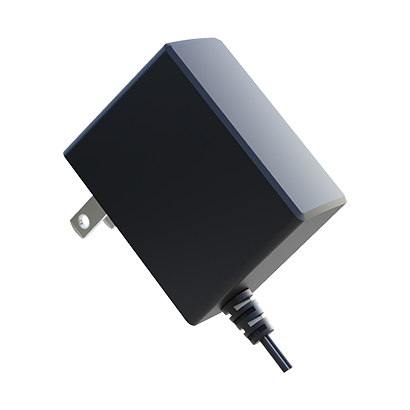

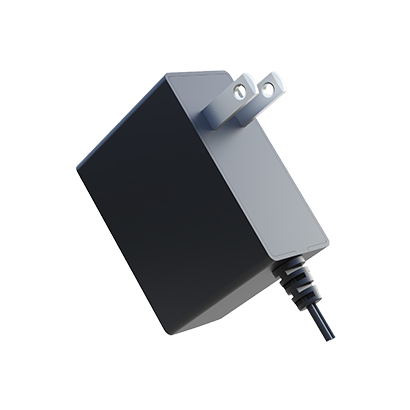

12A

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI DC Cable
9.0~15.9V 1.33A max 12W max VI DC Cable
16.0~24.0V 0.75A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

IN-2PIN

IN-3PIN

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12A2

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI DC Cable
9.0~12.0V 1.33A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

IN-2PIN

IN-3PIN

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12B

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.25A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI DC Cable
9.0~15.9V 1.33A max 12W max VI DC Cable
16.0~24.0V 0.75A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title


    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12B2

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.25A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI DC Cable
9.0~12.0V 1.33A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

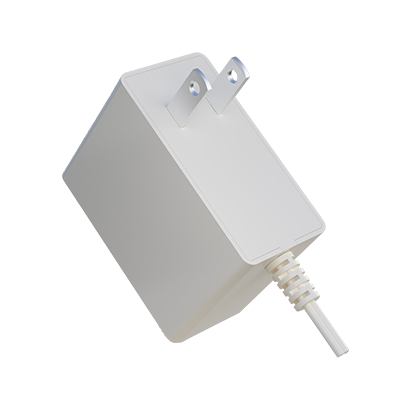

12C

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI DC Cable
9.0~15.9V 1.33A max 12W max VI DC Cable
16.0~24.0V 0.75A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

IN-2PIN

IN-3PIN

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12C2

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI DC Cable
9.0~12.0V 1.33A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

IN-2PIN

IN-3PIN

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

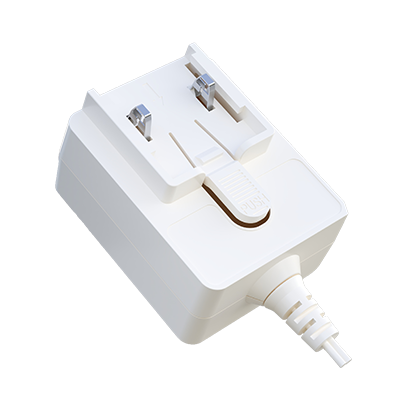

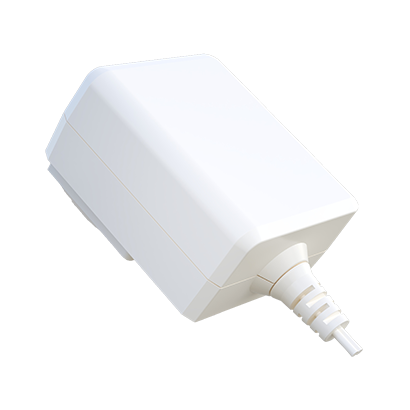

12D

Interchangeable Plug
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI DC Cable
9.0~15.9V 1.33A max 12W max VI DC Cable
16.0~24.0V 0.75A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

IN-2PIN

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12D2

Interchangeable Plug
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI DC Cable
9.0~12.0V 1.33A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

IN-2PIN

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12G

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI USB/DC Cable
9.0~15.9V 1.33A max 12W max VI DC Cable
16.0~24.0V 0.75A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

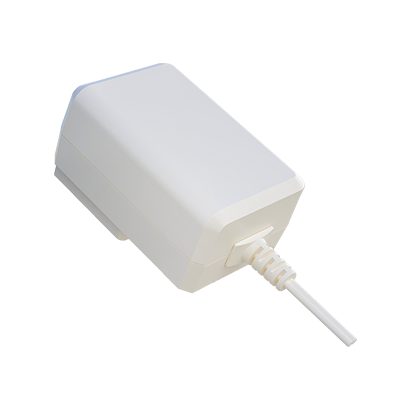

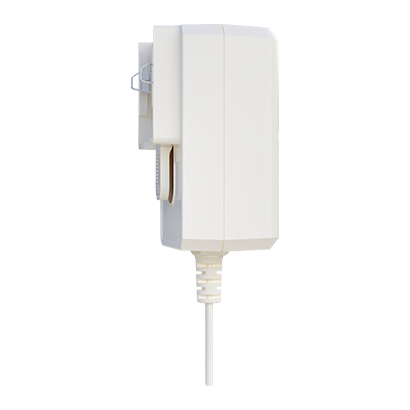

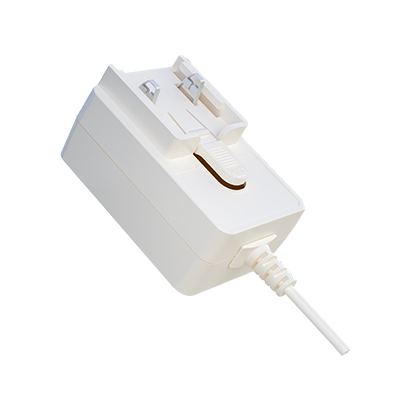

12H

Interchangeable Plug
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI USB/DC Cable
9.0~15.9V 1.33A max 12W max VI DC Cable
16.0~24.0V 0.75A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12Y

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI DC Cable
9.0~15.9V 1.33A max 12W max VI DC Cable
16.0~24.0V 0.75A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

UK

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

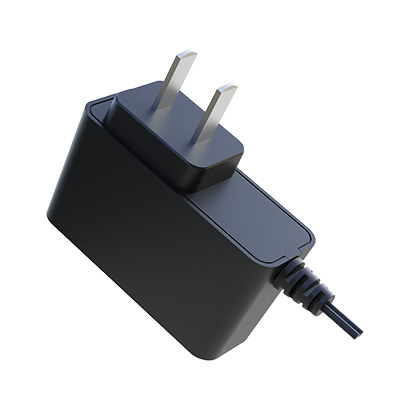

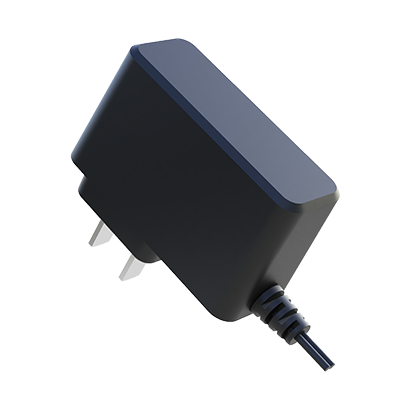

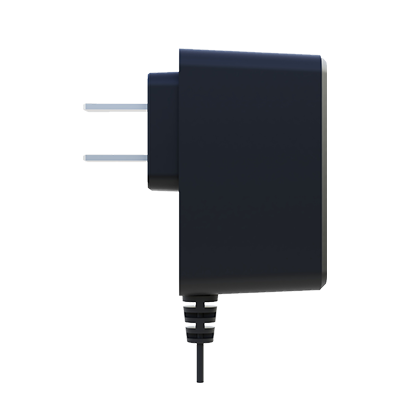

12J

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI DC Cable
9.0~12.0V 1.33A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

UK

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12AL

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.0A max 12W max VI DC Cable
9.0~12.0V 1.0A max 12W max VI DC Cable
20.0~24.0V 0.5A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12BL

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.0A max 12W max VI DC Cable
9.0~12.0V 1.0A max 12W max VI DC Cable
20.0~24.0V 0.5A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12CL

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.0A max 12W max VI DC Cable
9.0~12.0V 1.0A max 12W max VI DC Cable
20.0~24.0V 0.5A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12DL

Interchangeable Plug
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.0A max 12W max VI DC Cable
9.0~12.0V 1.0A max 12W max VI DC Cable
20.0~24.0V 0.5A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

AU/AG

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12Y2

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.4A max 12W max VI DC Cable
9.0~12.0V 1.33A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

UK

UK

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

12YL

Wallmount Type
  • Input Voltage / Frequency:

100~240V / 47~63Hz / 0.3A

  • ESD Protection:

Air Discharge 15kV

Contact Discharge 8kV max

  • Surge Protection:

Common Mode 6kV

Differential Mode 6kV max

  • Protection: OVP / OCP / SCP
  • No Y-Cap Design

Output Specifications

Voltage Current Power Efficiency Output Part
5.0~8.9V 2.0A max 12W max VI DC Cable
9.0~12.0V 1.0A max 12W max VI DC Cable
20.0~24.0V 0.5A max 12W max VI DC Cable

AC Plug Types

CN/US/JP

EU/KR/BR

UK

UK
