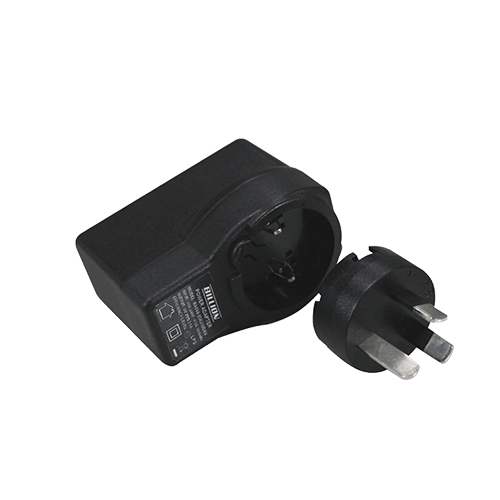

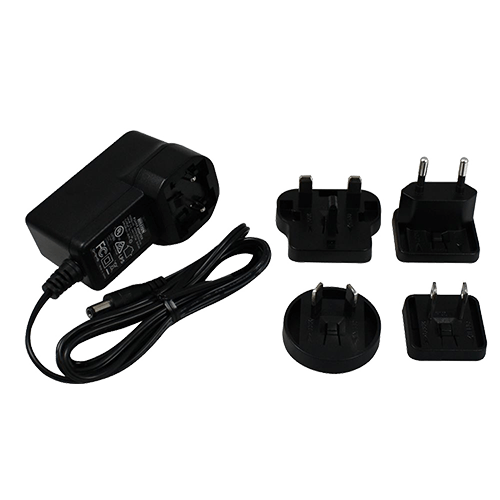

12W-18W Interchangeable Plug
Level 6
We provide a comprehensive selection of Level 6 power adapters that are flexible in customization based on clients' demands. Billion's manufacturing factories have been certified with ISO9001 highlighting reliable production and quality controls with a capacity of 400k/month. Contact us today and receive a competitive price quotation - welcome small quantity OEM/ODM customers.
Key Features & Benefits
Features
- BA018 series product
- Efficiency: DOE/ErP level VI efficiency
- Over current protection
- Short circuit protection
- Class II construction
- No load power consumption < 0.075W
- Interchangable input connectors multi-blade US,UK,EU,AU,CN,KR
Application Diagram
Specifications
| Specification | |
|---|---|
| AC input voltage | 90V - 264V |
| DC output voltage | 5V - 56V |
| Output load (max) | 0A - 3A |
| Output regulation | ±5% |
| Efficiency | > 85.45% (5V ≥ 81.39%) |
| MTBF | 50000 hrs |
| EMI & Safety approval | UL, cUL, CCC, KCC, PSE, RCM, CE, FCC, CB, EAC, TUV, BSMI, BIS, Level 6 |
| Dimension | 74 (L) x 48.7 (W) x 58 (H) mm / 68.5 (L) x 50.8 (W) x 41.5 (H) mm |
