CASE STUDIES

Fixed Wireless Access ｜Outdoor

Amazon Jungle

LTE Outdoor Router Copes with Limited Internet Access in Amazon Jungle

PDF Download

Executive Summary

Underserved communities in remote geographical regions struggle with long-distance internet access. Together with a global leading telecommunication company based in South America, Billion transformed the jungle-like environment into a typical smart city by harnessing Billion BiPAC 4700ZU Outdoor LTE CPE. Local communities needed high-speed internet connection from the durable router that resist heavy rain and humidity, provide wide service coverage, and flexible deployment throughout the difficult terrains. Nearly a thousand units of this rugged LTE outdoor router were installed at local schools, hospitals, emergency medical stations, and police stations in Amazon jungle of Southern America to serve local communities an everlasting uninterrupted, robust and secured internet network.
Challenges
Over half of the planet’s rainforest is located in Amazon jungle. It naturally has a humid climate with heavy rainfall where no stable internet service discovered. The local communities urged to install a reliable LTE outdoor router which can withstand high rainfall intensity with dramatic temperature changes between day and night and support solid mounting for different pole diameter. They also required a broad-range radius network to cover the connectivity gap between base station and local area. Thus, the telecommunication company desires to help schools, hospitals, emergency stations, and police stations to always stay connected with internet world.

Our Solution

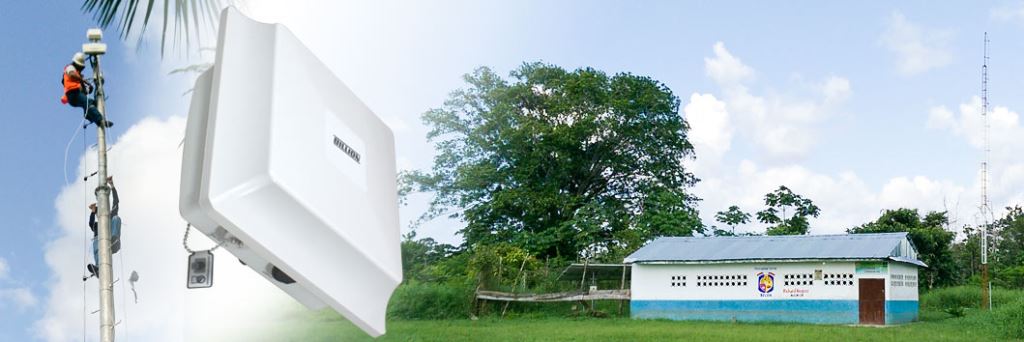

To deal with this situation, BiPAC 4700ZU LTE outdoor router was deployed in surrounding remote areas. BiPAC 4700ZU features direct dual-polarization MIMO antenna technology supporting multiple LTE frequency bands with data rate up to 100Mbps downlink and 50 Mbps uplink to optimize antenna design per band and maximize bandwidth service coverage. BiPAC 4700ZU delivers powerful VPN including IPSec, PPTP, L2TP, and GRE for secured private data encryption over the public internet.


BiPAC 4700ZU can endure the toughest industrial environment with IP67 enclosure to protect against dust and water ingress and extensive range of operating temperature -40°C to 60°C (-40°F to 140°F). BiPAC 4700ZU has a lightweight, compact and unobtrusive design, so it can be flexibly positioned on any pole size with mounting kit.

Results
Students, teachers, police officers, fire and ambulance dispatchers, doctors, and nurses can enjoy robustly and secured data transmission in real-time 24/7 from all points around the area. Billion BiPAC 4700ZU has revolutionized the wireless landscape in the jungle-like environment through strategic partnerships with the global leading telecommunication company.

"BiPAC 4700ZU features high-bandwidth and secured outdoor LTE CPE capable of delivering an excellent transmission quality in the harshest, extremely challenging rural environments. We are excited to triumph our competition by offering a high level of technical supports in the preliminary to the final router deployment and field testing phases”, commented by Billion Customer and the Head of Billion FAE.

Building a better network to serve rural communities with Billion

BiPAC 4700ZU
LTE Outdoor VPN Router

BiPAC 4700ZU, LTE Outdoor IP67 Rugged VPN Router, features VPN and optimal MIMO antenna per LTE band that can work for both LOS (Line of Sight) and NLOS (Non-Line of Sight) environments to maximize LTE wireless coverage at peaks speeds up to 100Mbps downlink and 50Mbps uplink with ultra transmission security. It also offers IP67 hardened enclosure with industrial-grade components to withstand the most challenging outdoor environments ranging from -40°C-60°C/-40°F-140°F.
