105PL054-3W240VWD
Surge Protection Device

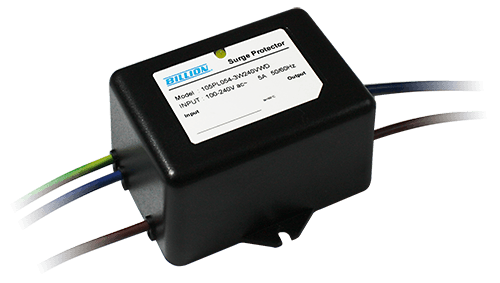

The Billion LCMS Surge Protection Device (LCMS SPD) is a high-level SPD. It is installed before each Intelligent Power Line Lighting Control Box(SG7500、SG7501) or any other LCMS devices. It ensures the system work properly by protect the LCMS network from the strong surge.
Key Features & Benefits
The Billion LCMS Surge Protection Device (LCMS SPD) is a high-level SPD. It is installed before each Intelligent Power Line Lighting Control Box(SG7500、SG7501) or any other LCMS devices. It ensures the system work properly by protect the LCMS network from the strong surge.
Key Features
- Max Load Current：4 Amp
- Nominal Discharge Current：5KA (10 * 8/20us waveform)
- Max. Discharge Current：10KA (1 * 8/20us waveform)
- Protection Level (1.2/50us)：
Common Mode (Line to Earth & Neutral to Earth)：10KV
- Compact and modest model size
- IP-67 compliant rugged design for high level of protection against dust and water
Application Diagram
The diagram indicates the system layout of Billion’s LCMS broadband PLC technology. In segment 2, the SG7510 communication gateway receives the lighting data from the Intelligent Control Box (SG7500/SG7501) which is installed on each streetlight. Users can access, monitor, and oversee a broad range of lighting status on a Billion-provided cloud computing platform. LCMS is an excellent technology grid allowing system operators to remotely control numerous streetlights at scattered locations.
Under particular circumstance, SG7530 can be optionally mounted underneath the assigned street light fixtures, bridging the status of individual street-lighting segments to one versatile LCMS Communication Broadband Gateway. System operators can reduce hardware and WAN network operational costs through this Intelligent Lighting Control System integration.

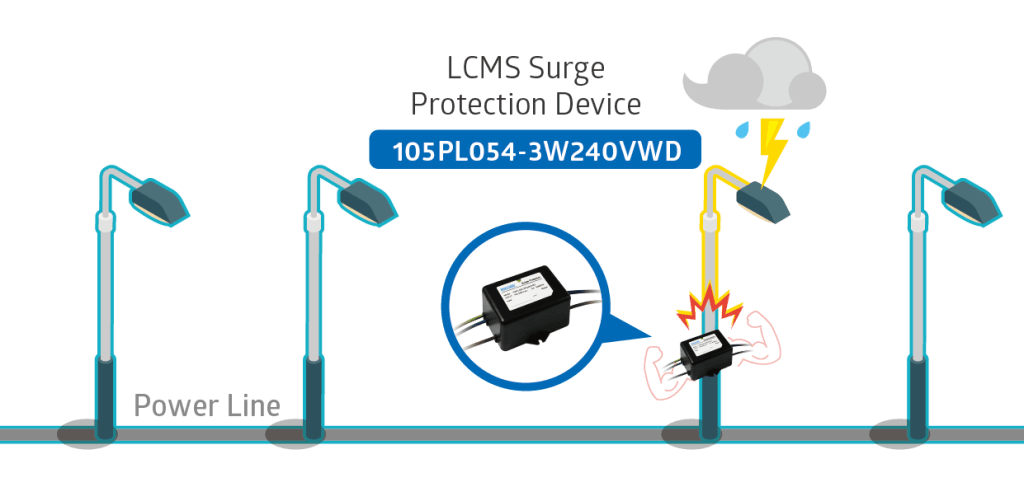

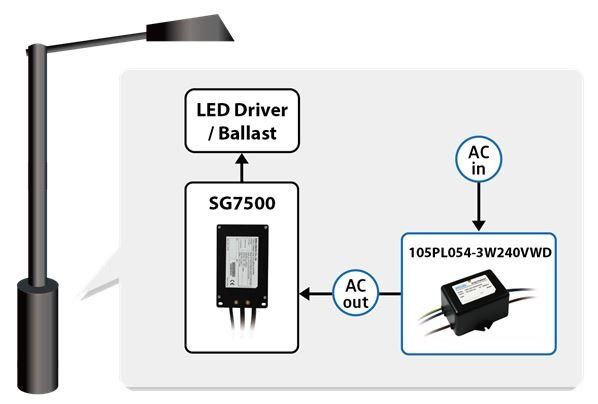

Meanwhile, we also provide a SPD 105PL054-3W240VWD designed to against surge, which protects the LCMS network from the strong surge. It also can be installed before each Intelligent Control Box (SG7500/SG7501) in the power line circuit.
Specifications
| Electrical Specifications |
|---|
| Input |
| Power Factor |
| Leakage Current |
| Protection |
| Class II isolation power |
| Operating Temperature |
| Operating Humidity |
| MTBF |
